Assessment of exhaust gas concentration uniformity in a marine engine duct based on dual-point sampling and CFD modelling
1
Environment Protection Centre, Motor Transport Institute, Poland
2
Faculty of Mechanical and Electrical Engineering, Polish Naval Academy, Poland
Submission date: 2025-06-10
Final revision date: 2025-07-18
Acceptance date: 2025-08-02
Online publication date: 2025-09-16
Corresponding author
Magdalena Zimakowska-Laskowska
Environment Protection Centre, Motor Transport Institute, Jagiellońska 80, 03-301, Warszawa, Poland
Environment Protection Centre, Motor Transport Institute, Jagiellońska 80, 03-301, Warszawa, Poland
KEYWORDS
TOPICS
ABSTRACT

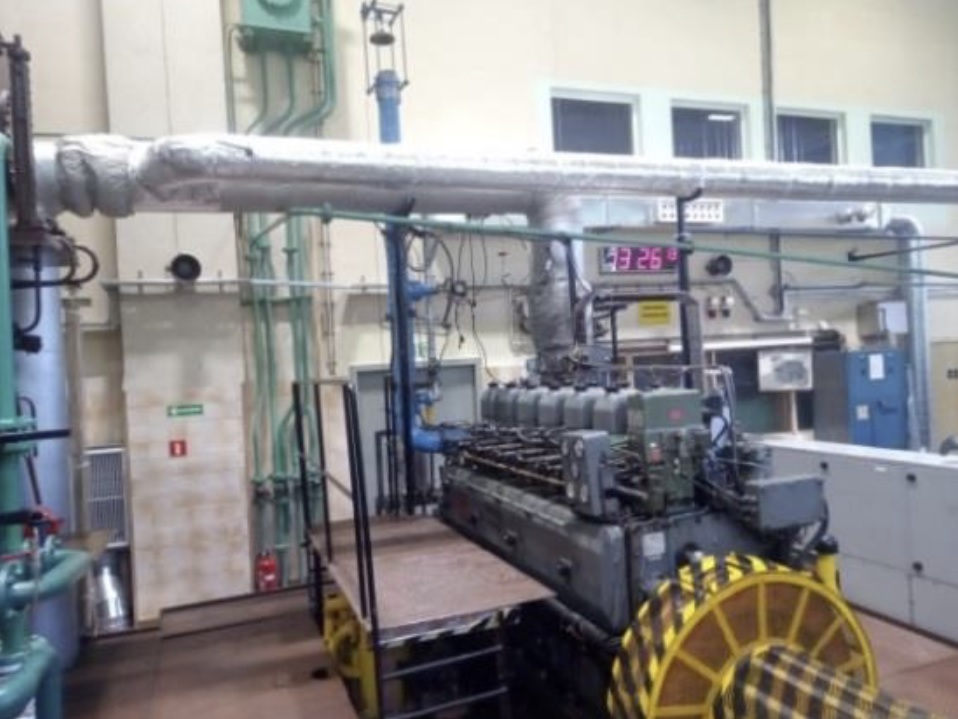

The paper presents an analysis of the flow of pollutants in the exhaust pipe of a marine diesel engine, based on measurements taken at two measurement points 2.5 meters apart. The concentrations of the basic exhaust components – CO, NOx, HC, and O₂ – were recorded during engine operation at different load levels, ranging from 30 to 686 kW. The aim of the analysis was to determine whether significant changes in the chemical composition of the exhaust gases occur in the section of the exhaust pipe between the two points. The results showed that the differences in the recorded concentrations were negligible, which confirms the homogeneity of the gas composition in the tested section and allows treating this section of the pipe as a conduit with established flow properties. Based on the measurements, a CFD model of exhaust flow was developed, representing the distribution of velocity and pressure in the exhaust pipe of a marine combustion engine. This model will be used to analyze mixing processes, possible local accumulation, and the effect of the geometry and operating conditions of the engine on the distribution of pollutants in the exhaust system.
REFERENCES (29)
1.
Bailey D, Solomon G. Pollution prevention at ports: clearing the air. Environ Impact Assess. 2004;24(7-8):749-774. https://doi.org/10.1016/j.eiar....
2.
Basiri MS, Shirneshan A, Hojaji M. The dispersion of various pollutants emitted from truck and passenger vehicles: a wind-tunnel study. Environ Monit Assess. 2023;195(12):1417. https://doi.org/10.1007/s10661....
3.
Bogdanowicz A, Kniaziewicz T. Simulation of concentrations harmful compounds from main ships propulsion engine cooperating with a fixed pitch propeller in dynamic states. Combustion Engines. 2019;178(3):51-55. https://doi.org/10.19206/CE-20....
4.
Bogdanowicz A, Zadrąg R. Identification of emission indicators harmful compounds for assessment of dynamic state of a marine diesel engine. Combustion Engines. 2019;178(3):247-251. https://doi.org/10.19206/CE-20....
5.
Deng B, Chen Y, Duan X, Li D, Li Q, Tao D et al. Dispersion behaviors of exhaust gases and nanoparticle of a passenger vehicle under simulated traffic light driving pattern. Sci Total Environ. 2020;740:140090. https://doi.org/10.1016/j.scit....
6.
Gil L, Przystupa K, Pieniak D, Kozłowski E, Antosz K, Gauda K et al. Influence of contamination of gear oils in relation to time of operation on their lubricity. Appl Sci. 2021;11(24):11835. https://doi.org/10.3390/app112....
7.
He H, Shi W, Lu W-Z. Investigation of exhaust gas dispersion in the near-wake region of a light-duty vehicle. Stoch Environ Res Risk Assess. 2017;31(3):775-783. https://doi.org/10.1007/s00477....
8.
Huang L, Wen Y, Geng X, Zhou C, Xiao C, Zhang F. Estimation and spatio-temporal analysis of ship exhaust emission in a port area. Ocean Eng. 2017;140:401-411. https://doi.org/10.1016/j.ocea....
9.
Jeong S, Bendl J, Saraji-Bozorgzad M, Käfer U, Etzien U, Schade J et al. Aerosol emissions from a marine diesel engine running on different fuels and effects of exhaust gas cleaning measures. Environ Pollut. 2023;316:120526. https://doi.org/10.1016/j.envp....
10.
Johansson L, Karppinen A, Kurppa M, Kousa A, Niemi JV, Kukkonen J. An operational urban air quality model ENFUSER, based on dispersion modelling and data assimilation. Environ Modell Softw. 2022;156:105460. https://doi.org/10.1016/j.envs....
11.
Kesarkar AP, Dalvi M, Kaginalkar A, Ojha A. Coupling of the weather research and forecasting model with AERMOD for pollutant dispersion modeling. A case study for PM10 dispersion over Pune, India. Atmos Environ. 2007;41(9):1976-1988. https://doi.org/10.1016/j.atmo....
12.
Lin C, Ooka R, Kikumoto H, Sato T, Arai M. Wind tunnel experiment on high-buoyancy gas dispersion around isolated cubic building. J Wind Eng Ind Aerod. 2020;202:104226. https://doi.org/10.1016/j.jwei....
13.
Miola A, Ciuffo B. Estimating air emissions from ships: meta-analysis of modelling approaches and available data sources. Atmos Environ. 2011;45(13):2242-2251. https://doi.org/10.1016/j.atmo....
14.
Ni P, Wang X, Li H. A review on regulations, current status, effects and reduction strategies of emissions for marine diesel engines. Fuel. 2020;279:118477. https://doi.org/10.1016/j.fuel....
15.
Orlandi A, Calastrini F, Kalikatzarakis M, Guarnieri F, Busillo C, Coraddu A. Air quality forecasting of along-route ship emissions in realistic meteo-marine scenarios. Ocean Eng. 2024;291:116464. https://doi.org/10.1016/j.ocea....
16.
Pehlivan EF, Altın İ. A full-scale CFD model of scavenge air inlet temperature on two-stroke marine diesel engine combustion and exhaust emission characteristics. International Journal of Energy Studies. 2024;9(3):493-517. https://doi.org/10.58559/ijes.....
17.
Puškár M, Kopas M, Puškár D, Lumnitzer J, Faltinová E. Method for reduction of the NOx emissions in marine auxiliary diesel engine using the fuel mixtures containing biodiesel using HCCI combustion. Mar Pollut Bull. 2018;127:752-760. https://doi.org/10.1016/j.marp....
18.
Rezaali M, Fouladi-Fard R, O’Shaughnessy P, Naddafi K, Karimi A. Assessment of AERMOD and ADMS for NOx dispersion modeling with a combination of line and point sources. Stoch Environ Res Risk Assess. 2025;39(2):813-827. https://doi.org/10.1007/s00477....
19.
Saha PK, Khlystov A, Snyder MG, Grieshop AP. Characterization of air pollutant concentrations, fleet emission factors, and dispersion near a North Carolina Interstate Freeway across two seasons. Atmos Environ. 2018;177:143-153. https://doi.org/10.1016/j.atmo....
20.
Seo M-J, Kwak K-K, Kang S-M, Jeong J-H. RANS-based CFD methodology and modeling of a 1/100 scale thermoelectric power generation system for container ships. J Mech Sci Technol. 2024;38(8):3997-4004. https://doi.org/10.1007/s12206....
21.
Soulhac L, Salizzoni P, Cierco F-X, Perkins R. The model SIRANE for atmospheric urban pollutant dispersion; part I, presentation of the model. Atmos Environ. 2011;45(39):7379-7395. https://doi.org/10.1016/j.atmo....
22.
Soulhac L, Salizzoni P, Mejean P, Didier D, Rios I. The model SIRANE for atmospheric urban pollutant dispersion; part II, validation of the model on a real case study. Atmos Environ. 2012;49:320-337. https://doi.org/10.1016/j.atmo....
23.
Tinarelli GL, Trini Castelli S. Assessment of the sensitivity to the input conditions with a Lagrangian Particle Dispersion Model in the UDINEE Project. Boundary-Layer Meteorol. 2019;171(3):491-512. https://doi.org/10.1007/s10546....
24.
Vasudev A, Mikulski M, Balakrishnan PR, Storm X, Hunicz J. Thermo-kinetic multi-zone modelling of low temperature combustion engines. Prog Energ Combust. 2022;91:100998. https://doi.org/10.1016/j.pecs....
25.
Wu D, Ding X, Li Q, Sun J, Huang C, Yao L et al. Pollutants emitted from typical Chinese vessels: potential contributions to ozone and secondary organic aerosols. J Clean Prod. 2019;238:117862. https://doi.org/10.1016/j.jcle....
26.
Yang L, Ji S, Niu W, Zare A, Hunicz J, Brown RJ. Effect of split injection strategy of diesel fuel on multi-stage heat release and performance of a RCCI engine fueled with diesel and natural gas. Fuel. 2024;362:130930. https://doi.org/10.1016/j.fuel....
27.
Zhang S, Peng D, Li Y, Zu L, Fu M, Yin H et al. Study on the real-world emissions of rural vehicles on different road types. Environ Pollut. 2021;273:116453. https://doi.org/10.1016/j.envp....
28.
Zhou C, Li M, Zhang F, Wen Y, Huang L, Tang W et al. A Bridge-based ship exhaust monitoring method in the yangtze river: modeling interaction effects between ship exhaust plume and river-crossing bridge. Mar Pollut Bull. 2025;213:117574. https://doi.org/10.1016/j.marp....
29.
Zimakowska-Laskowska M, Kniaziewicz T. Analysis of methods for estimating pollutant emissions from marine engines in terms of their use for evaluating ambient air quality. Combustion Engines. 2025. https://doi.org/10.19206/CE-20....
