Assessment of the chemical composition homogeneity of turbine blades from a jet engine turbine
1
Instytut Transportu/ Institute of Transport, Politechnika Poznańska / Poznan University of Technology, Poland
2
Institute of Technical Chemistry and Electrochemistry, Poznań University of Technology, Poland
Submission date: 2026-07-17
Final revision date: 2026-09-29
Acceptance date: 2026-10-02
Online publication date: 2026-10-08
Corresponding author
Grzegorz M. Szymański
Instytut Transportu/ Institute of Transport, Politechnika Poznańska / Poznan University of Technology, Piotrowo 3, 60-965, Poznań, Poland
Instytut Transportu/ Institute of Transport, Politechnika Poznańska / Poznan University of Technology, Piotrowo 3, 60-965, Poznań, Poland
KEYWORDS
TOPICS
ABSTRACT

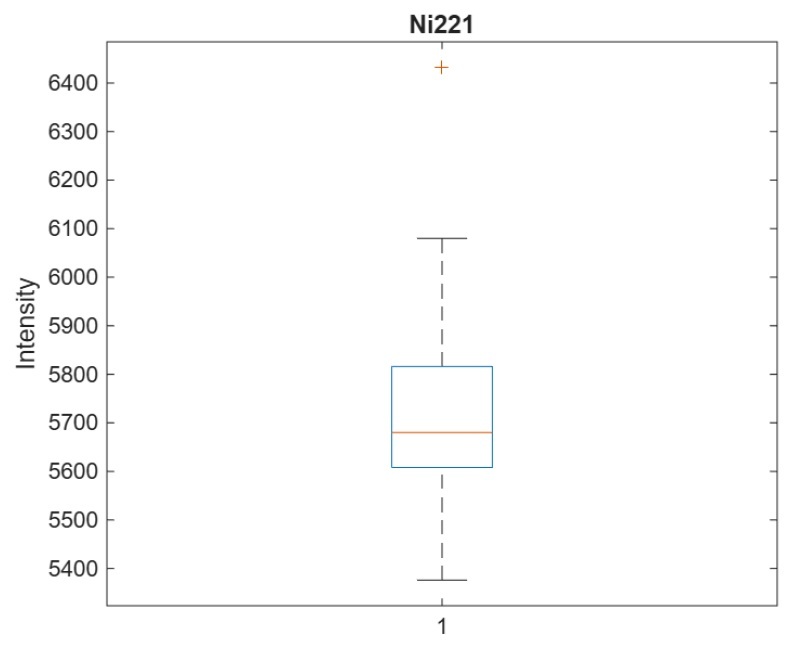

The variability of primary emission signals from high-pressure turbine blades originating from the same stage of an SO-3 turbojet engine was evaluated using Laser Ablation coupled with Microwave-Induced Plasma Optical Emission Spectrometry (LA-MIP OES). Forty turbine blades were investigated, with one analytical measurement performed for each blade. Direct solid sampling enabled multi-element analysis without chemical sample preparation. The primary emission signal intensities of nickel, molybdenum, chromium, cobalt, and aluminum were statistically evaluated using mean values, standard deviations, coefficients of variation, interquartile ranges, confidence intervals, and boxplot analysis. The coefficients of variation ranged from 3.44% to 11.60%, indicating relatively low variability of the measured emission signals among the investigated blades. The lowest variability was observed for cobalt, nickel, and molybdenum, whereas chromium exhibited the highest dispersion. The results demonstrate a high degree of uniformity of the measured emission signals and indicate the potential of LA-MIP OES for comparative assessment of turbine blade materials.
REFERENCES (34)
1.
Badyda K. Perspektywy rozwoju technologii turbin gazowych oraz bloków gazowo-parowych. Rynek Energii. 2014:9-15.
2.
Badyda K, Miller A. Energetyczne turbiny gazowe oraz układy z ich wykorzystaniem. Kaprint. Lublin 2014.
3.
Bin G, Yang P, Li J, Li C, Zhang W, Miao H et al. Review of particle deposition on aeroengine turbine blades and its mitigation. Int J Heat Fluid Flow. 2026;117:110023. https://doi.org/10.1016/j.ijhe....
4.
Boyce MP. Gas turbine engineering handbook. 4th ed. Butterworth-Heinemann. Oxford 2011.
5.
Bravo LG, Jain N, Khare P, Murugan M, Ghoshal A, Flatau A. Physical aspects of CMAS particle dynamics and deposition in turboshaft engines. J Mater Res. 2020;35:2249-2259. https://doi.org/10.1557/jmr.20....
6.
Callister WD, Rethwisch DG. Materials science and engineering: an introduction. 10th ed. Hoboken. John Wiley & Sons. NJ 2018.
7.
Ciocan A, Uebbing J, Niemax K. Analytical application of the microwave induced plasma used with laser ablation of solid samples. Spectrochim Acta B At Spectrosc. 1992;47:611-617. https://doi.org/10.1016/0584-8....
8.
Czarnecki ML. Micro gas turbine evolution, a quarter-century review. Combustion Engines. 2025;2(201):83-90. https://doi.org/10.19206/CE-20....
9.
Dixon SL, Hall CA. Fluid mechanics and thermodynamics of turbomachinery. 7th ed. Butterworth-Heinemann. Oxford 2014.
10.
El-Sayed A. Aircraft propulsion and gas turbine engines. Boca CRC Press. Raton 2008.
11.
Faizal WM, Mazlan NM, Khor CY, Hazwan MHM, Misbah MN, Haidiezul AHM. Fluid-structure interaction in turbine blade under different sustainable aviation fuel: a featured study of mechanical behavior. Fuel. 2026;406:137027. https://doi.org/10.1016/j.fuel....
12.
Fathyunes L, Mohtadi-Bonab MA. A review on the corrosion and fatigue failure of gas turbines. Metals. 2023;13(4):701. https://doi.org/10.3390/met130....
13.
Gong N, Meng TL, Teo SL, Cao J, Lee CJJ, Tan CKI et al. High-temperature oxidation and hot corrosion of Ni-based single crystal superalloy in the incubation stage. Corros Sci. 2023;214:111026. https://doi.org/10.1016/j.cors....
14.
Guo HY, Tan ZH, Li YM, Zou MK, Tao Y, Wang XG et al. Diffusion of alloying elements during high temperature oxidation in a low-cost third generation Ni-based single crystal superalloy. Mater Charact. 2024;211:113913. https://doi.org/10.1016/j.matc....
15.
Hiddemann L, Uebbing J, Ciocan A, Dessenne O, Niemax K. Simultaneous multi-element analysis of solid samples by laser ablation–microwave-induced plasma optical emission spectrometry. Anal Chim Acta. 1993;283:152-159. https://doi.org/10.1016/0003-2....
16.
Jakubowski R, Orkisz M. Sprawność turbinowego silnika odrzutowego dla różnych warunków pracy dyszy wylotowej. Journal of KONES. 2000;7:207-216.
17.
Kurzawska-Pietrowicz P. Comprehensive analysis of particle emissions from miniature turbojet engine. Combustion Engines. 2025;1(200):12-18. https://doi.org/10.19206/CE-19....
18.
Kurzawska-Pietrowicz P, Szrama S, Jasiński R, Siedlecki M. Evaluation of jet engine performance parameters fueled with sustainable aviation fuel. Combustion Engines. 2026;1(204):35-42. https://doi.org/10.19206/CE-20....
19.
Laguna-Camacho JR, Villagrán-Villegas LY, Martínez-García H, Juárez-Morales G, Cruz-Orduña MI, Vite-Torres M et al. A study of the wear damage on gas turbine blades. Eng Fail Anal. 2016;61:88-99. https://doi.org/10.1016/j.engf....
20.
Langston LS. Turbines, gas. In: Reference module in earth systems and environmental sciences. Elsevier 2013. https://doi.org/10.1016/B978-0....
21.
Léonard O, Thomas JP, Borguet S. Ten years of experience with a small jet engine as a support for education. J Eng Gas Turbines Power. 2009;131(1):012303. https://doi.org/10.1115/1.2967....
23.
Padture NP, Gell M, Jordan EH. Thermal barrier coatings for gas-turbine engine applications. Science. 2002;296(5566):280-284. https://doi.org/10.1126/scienc....
24.
Palkus K. Numerical analysis of the front deflector at the outer air seal of low-pressure turbine. Combustion Engines. 2026;3(206):121-129. https://doi.org/10.19206/CE-21....
25.
Reed RC, Tao T, Warnken N. Alloys-by-design: application to nickel-based single crystal superalloys. Acta Mater. 2009;57(19):5898-5913. https://doi.org/10.1016/j.acta....
26.
Saravanamuttoo HIH, Rogers GFC, Cohen H, Straznicky PV, Nix AC. Gas turbine theory. 7th ed. Pearson. Harlow 2017.
27.
Sims CT, Stoloff NS, Hagel WC, eds. Superalloys II: high-temperature materials for aerospace and industrial power. 2nd ed. Wiley-Interscience. New York 1987.
28.
Şöhret Y, Ekici S, Altuntaş Ö, Hepbaşlı A, Karakoç TH. Exergy as a useful tool for the performance assessment of aircraft gas turbine engines: a key review. Prog Aerosp Sci. 2016;83:57-69. https://doi.org/10.1016/j.paer....
29.
Świerżawski T. Sprawność napędu odrzutowego. Zeszyty Naukowe Politechniki Śląskiej. Energetyka. 1957;2.
30.
Tetsui T. Identifying low-cost, machinable, impact-resistant TiAl alloys suitable for last-stage turbine blades of jet engines. Intermetallics. 2024;168:108263. https://doi.org/10.1016/j.inte....
31.
Uebbing J, Ciocan A, Niemax K. Optical emission spectrometry of a microwave induced plasma used with laser ablation of solid samples. Spectrochim Acta B At Spectrosc. 1992;47:601-610. https://doi.org/10.1016/0584-8....
32.
Walsh PP, Fletcher P. Gas turbine performance. 2nd ed. Blackwell Publishing. Oxford 2004. https://doi.org/10.1002/978047....
33.
Xie J, Ma Q, Li YC, Pu H, Li RD. Study of particle deposition characteristics on turbine blade surfaces based on a dual-parameter model. Int J Heat Mass Transf. 2026;265:128812. https://doi.org/10.1016/j.ijhe....
34.
Zhao X, Zhang D, Li ZY, Yang HY, Zhong XM, Chen JB. Microstructure and high-temperature creep behavior of nano-strengthened superalloys. J Mater Res Technol. 2026;41:2000-2021. https://doi.org/10.1016/j.jmrt....
