Enhancing combustion characteristics in a constant volume chamber using a novel multi-injection system for liquid fuel and propane-air stratified mixtures
More details
Hide details
1
Mechanical Engineering, Faculty of Science and Engineering HOSEI University, Japan
Submission date: 2025-06-09
Final revision date: 2025-07-25
Acceptance date: 2025-07-29
Online publication date: 2025-10-29
Corresponding author
Tadashige Kawakami
Mechanical Engineering, Faculty of Science and Engineering HOSEI University, 3-7-2 Kajino-cho, 1848584, Koganei, Japan
KEYWORDS
TOPICS
ABSTRACT
This study explores a novel multi-injection strategy that combines axis-opposed and single-spray injections to enhance combustion characteristics in a constant volume combustion chamber. In direct-injection internal combustion engines, fuel impingement on the piston and cylinder walls—particularly during cold-start conditions—remains a common challenge. This issue can lead to increased unburned hydrocarbon emissions, greater cooling losses, and reduced thermal efficiency.

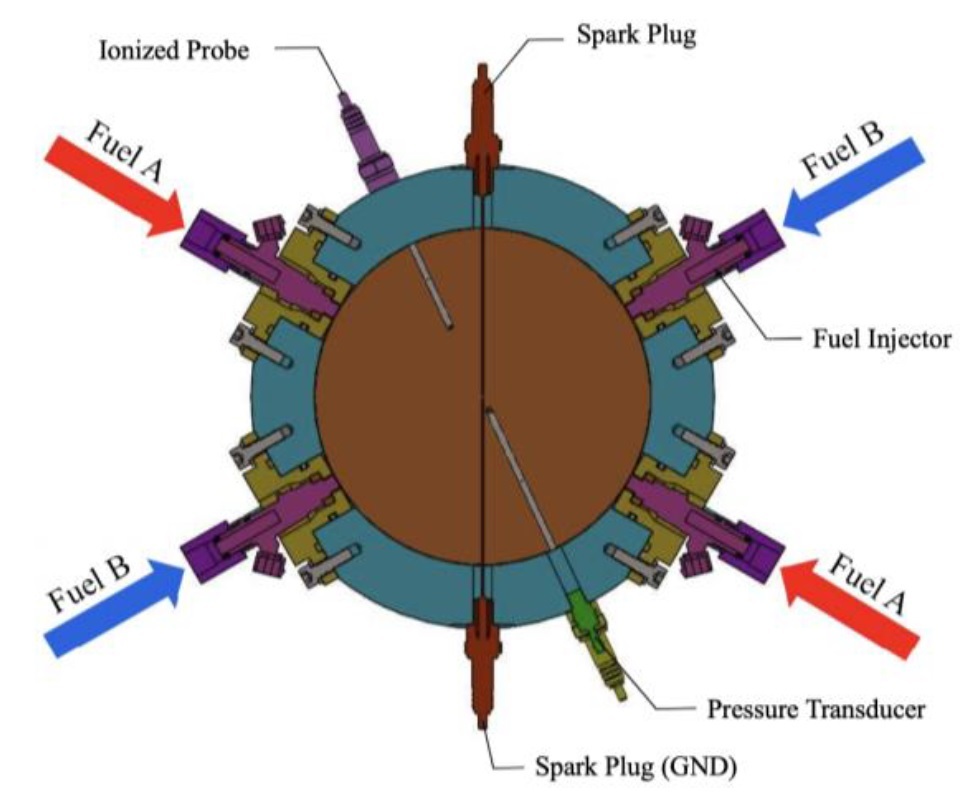

To address this challenge, a multi-injection system was developed, integrating two pairs of axis-opposed injectors that combine both axis-opposed and single sprays. The core concept of this multi-injection approach is to leverage fuel spray collisions from axis-opposed injections to enhance atomization and mitigate wall wetting. However, conventional axis-opposed injections tend to cause liquid jet and droplet coalescence, which can negatively impact combustion efficiency. Therefore, it is essential to establish a combustion improvement strategy for regions where coalesced droplet groups form.
Compared to single-spray and conventional axis-opposed injection systems, the proposed multi-injection strategy promotes droplet atomization and improves fuel-air mixture homogeneity through optimized injector layout and injection timing. Additionally, combustion tests using low-reactivity fuel were conducted to assess the feasibility of this injection strategy under challenging ignition conditions. In-cylinder pressure measurements were analyzed to evaluate the effects of fuel injection conditions and the influence of fuel collision behavior on combustion performance. The results demonstrate that the proposed multi-injection approach is a promising strategy for enhancing combustion efficiency and improving combustion control in advanced engine systems.
REFERENCES (29)
1.
Ahamad J, Kumar P, Dhar A. Influence of twin spark on performance and emissions of methanol fueled direct injection engine under multi-injection approach. J Energy Inst. 2025;120:102120.
https://doi.org/10.1016/j.joei....
2.
Bahreini R, Xue J, Johnson K, Durbin T, Quiros D, Hu S et al. Characterizing emissions and optical properties of particulate matter from PFI and GDI light-duty gasoline vehicles. J Aerosol Sci. 2015;90:144-153.
https://doi.org/10.1016/j.jaer....
3.
Bielaczyc P, Szczotka A, Woodburn J. An overview of cold start emissions from direct injection spark-ignition and compression ignition engines of light duty vehicles at low ambient temperatures. Combustion Engines. 2013;154(3):96-103.
https://doi.org/10.19206/CE-11....
4.
Davis SC, Williams SE, Boundy RG, Moore S. Vehicle Technologies Market Report [Internet]. Oak Ridge (TN): Oak Ridge National Laboratory; 2015 (accessed on 2017 Apr 20). Available from:
http://cta.ornl.gov/vtmarketre....
5.
EPA; NHTSA. 2017 and later model year light-duty vehicle greenhouse gas emissions and corporate average fuel economy standards; final rule. Fed Regist. 2012 Oct 15. Available from:
https://www.govinfo.gov/conten....
6.
Fellner F, Fitz P, Kraus C, Joerg C, Miyamoto A, Härtl M et al. Algorithm-calculated multiple injection patterns to meet future requirements to direct-injection spark ignited engines. SAE Technical Paper 2022-01-1068. 2022.
https://doi.org/10.4271/2022-0....
7.
Fushimi A, Kondo Y, Kobayashi S, Fujitani Y, Saitoh K, Takami A et al. Chemical composition and source of fine and nanoparticles from recent direct injection gasoline passenger cars: effects of fuel and ambient temperature. Atmos Environ. 2016;124:77-84.
https://doi.org/10.1016/j.atmo....
8.
Glassey S, Stockner A, Flinn M. HEUI – a new direction for diesel engine fuel systems. SAE Technical Paper 930270. 1993.
https://doi.org/10.4271/930270.
9.
Gęca MJ, Radica G. Effect of compression ignition engine preheating on its performance under cold start conditions. Combustion Engines. 2022;188(1):67-74.
https://doi.org/10.19206/CE-14....
10.
Guo W, Xiao M, Zhang Z, Wang Y, Shi L, Deng K. Effects of multiple injections on the combustion and hydrocarbon emission characteristics of the start cylinder in direct-start process. Fuel. 2022;320:123851.
https://doi.org/10.1016/j.fuel....
11.
Han T, Singh R, Lavoie G, Wooldridge M, Boehman A. Multiple injection for improving knock, gaseous and particulate matter emissions in direct injection SI engines. Appl Energy. 2020;262:114578.
https://doi.org/10.1016/j.apen....
12.
Hashimoto J, Nouno Y. Numerical analysis on soot formation due to fuel deposits under a DI gasoline engine like condition. JSAE Rev. 2014;45(5):787-792.
https://doi.org/10.11351/jsaer....
13.
Kalwar A, Agarwal AK. Overview, advancements and challenges in gasoline direct injection engine technology. In: Singh A, Sharma N, Agarwal R, Agarwal AK, editors. Advanced combustion techniques and engine technologies for the automotive sector. Springer. Singapore 2020. 97-115.
https://doi.org/10.1007/978-98....
14.
Kaminaga T, Fujikawa T, Hara R, Youso T, Yamagawa M. Combustion technologies of high compression ratio engine using high pressure gasoline injection (first report): feasibility study of high pressure gasoline injection. Trans Jpn Soc Automot Eng. 2018;49(4):745-750.
https://doi.org/10.11351/jsaer....
15.
Kang R, Zhou L, Hua J, Feng D, Wei H, Chen R. Experimental investigation on combustion characteristics in dual-fuel dual-injection engine. Energy Convers Manag. 2019;181:15-25.
https://doi.org/10.1016/j.enco....
16.
Kang S, Lee S, Bae C. Effects of multi-stage split injection on efficiency and emissions of light-duty diesel engine. Energies. 2022;15(6):2219.
https://doi.org/10.3390/en1506....
17.
Kato T, Tsujimura K, Shintani M, Minami T. Spray characteristics and combustion improvement of D.I. diesel engine with high pressure fuel injection. SAE Technical Paper 890265. 1989.
https://doi.org/10.4271/890265.
18.
Liu H, Liu Q, Wang C. A novel valve strategy for particulate matter reduction in a gasoline direct injection engine operated at cold conditions. Int J Engine Res. 2024;26(3):325-338.
https://doi.org/10.1177/146808....
19.
Liu J, Kawakami T, Oiwa R, Suzuki T, et al. Effect of blend fuel properties on combustion improvement under heterogeneous combustion field by using multi-impinging injection system. SAE Technical Paper 2021-01-1194. 2021.
https://doi.org/10.4271/2021-0....
20.
Liu J, Kawakami T, Oiwa R, Suzuki T, Aoki H. Experimental study of combustion improvement in heterogeneous combustion field by using new type multi-impinging injection system. SAE Technical Paper 2020-01-2105. 2020.
https://doi.org/10.4271/2020-0....
21.
Lonari Y, Yoneya N, Miyake T, Namaizawa Y. Investigation of high fuel pressure and multiple injection to reduce engine emission during catalyst light-off. SAE Technical Paper 2023-01-0244. 2023.
https://doi.org/10.4271/2023-0....
22.
Matsui Y, Sugihara K. Sources of hydrocarbon emissions from a small direct injection diesel engine. SAE Technical Paper 871613. 1987.
https://doi.org/10.4271/871613.
23.
May AA, Nguyen NT, Presto AA, Gordon TD, Lipsky EM, Karve M et al. Gas- and particle-phase primary emissions from in-use, on-road gasoline and diesel vehicles. Atmos Environ. 2014;88:247-260.
https://doi.org/10.1016/j.atmo....
24.
Rostampour A, Shojaeefard MH, Molaeimanesh GR, Safaei-Arshi A. Effects of wall wetting and in-cylinder fuel distribution in an advanced turbo-charged engine. J Cent South Univ. 2022;29(7):2165-2178.
https://doi.org/10.1007/s11771....
25.
Saliba G, Saleh R, Zhao Y, Presto AA, Lambe AT, Frodin B et al. Comparison of gasoline direct-injection (GDI) and port fuel injection (PFI) vehicle emissions: emission certification standards, cold-start, secondary organic aerosol formation potential, and potential climate impacts. Environ Sci Technol. 2017;51(11):6542-6552.
https://doi.org/10.1021/acs.es....
26.
Sun Z, Cui M, Ye C, Yang S, Li X, Hung D et al. Split injection flash boiling spray for high efficiency and low emissions in a GDI engine under lean combustion condition. Proc Combust Inst. 2021;38(4):5769-5779.
https://doi.org/10.1016/j.proc....
27.
Zhang S, McMahon W. Particulate emissions for LEV II light-duty gasoline direct injection vehicles. SAE Int J Fuels Lubr. 2012;5(2):637-646.
https://doi.org/10.4271/2012-0....
28.
Zhang T, Yang Z, Zhao H, Li B, Qin J. Simulation study on the influence of fuel injection strategy on the soot emission of dual-injection engine. E3S Web Conf. 2022;356:03046.
https://doi.org/10.1051/e3scon....
29.
Zhao F, Lai MC, Harrington DL. Automotive spark-ignited direct-injection gasoline engines. Prog Energy Combust Sci. 1999;25(5):437-562.
https://doi.org/10.1016/S0360-....
