Comparative analysis of IC diesel engine performance fueled with diesel/hydrogen and diesel/ammonia mixtures
More details
Hide details
1
Department of Thermal Machines, Czestochowa University of Technology, Poland
Submission date: 2025-05-27
Final revision date: 2025-08-01
Acceptance date: 2025-09-18
Online publication date: 2025-10-16
KEYWORDS
TOPICS
ABSTRACT

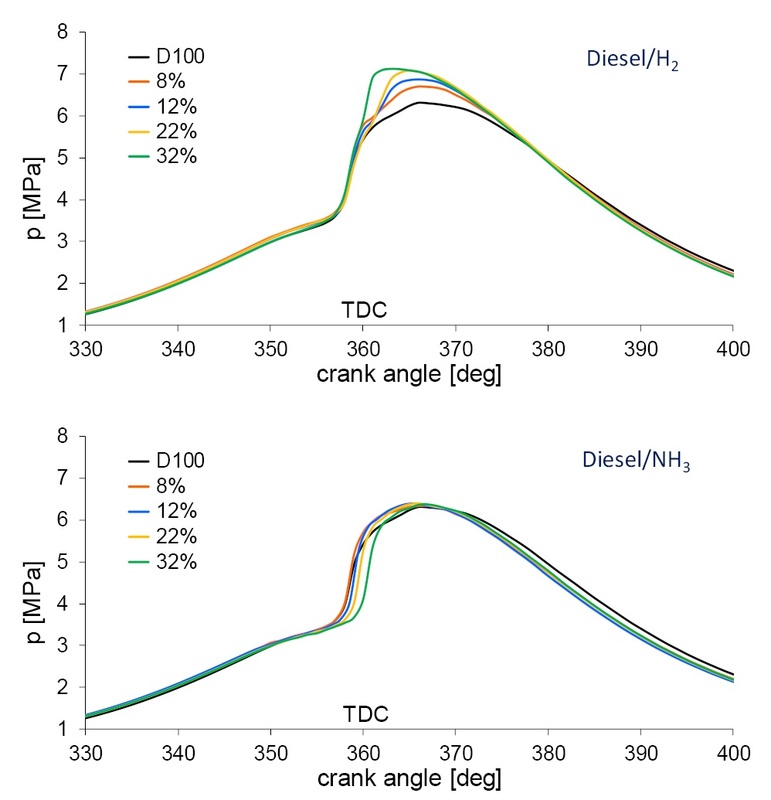

The paper presents the results of research performed on an internal combustion diesel engine operating on a dual-fuel strategy. Fuels used during the study were diesel as a reference fuel, pure hydrogen, and ammonia as a hydrogen carrier. Fuel mixtures of diesel/hydrogen and diesel/ammonia were added to the engine, at energetic shares of 8, 12, 22, and 32% to maintain the constant engine load compared to the engine fueled with diesel. A comparison of the engine performance and the combustion process was made. Under the test conditions for all mixtures, the indication of the combustion pressure was made. The indication results were used to calculate engine performance parameters, such as IMEP, engine power, COVIMEP, and thermal efficiency. They were also used to describe the combustion process, including the determination of parameters like combustion stages, 50% MFB position, and HRR. The analysis of the results shows that adding hydrogen or ammonia as a main fuel causes a much faster combustion process compared to a diesel fuel engine. With an increase in energetic share, the combustion characteristic of the diesel/hydrogen engine shows two maxima in the HRR curve, besides 32% where there is only one peak. In contrast, for the diesel/ammonia engine, there is only one maximum, where an increase in the value of the kinetic combustion phase and the delay of ignition occur.
REFERENCES (32)
1.
Akar MA, Kekilli E, Bas O, Yildizhan S, Serin H, Ozcanli M, Hydrogen enriched waste oil biodiesel usage in compression ignition engine. Int J Hydrogen Energy. 2018;43(38):18046-18052.
https://doi.org/10.1016/j.ijhy....
2.
Bjørgen KOP, Emberson DR, Løvås T. Combustion of liquid ammonia and diesel in a compression ignition engine operated in high-pressure dual fuel mode. Fuel. 2024;360:130269.
https://doi.org/10.1016/j.fuel....
4.
Chun J, McKeown J, Kang S. Impact of vehicle electrification on road roughness induced greenhouse gas (GHG) emissions. Sustainable Energy Technologies and Assessments. 2024;64:103701.
https://doi.org/10.1016/j.seta....
5.
Dhas AAG, Almoallim HS, Ganeshan S, Anbarasu A, Gavurova B. In-depth study of waste cooking oil blends with hydrogen and ammonia in internal combustion engine: Performance and emission study. Fuel. 2024;369:131663.
https://doi.org/10.1016/j.fuel....
6.
Dong C, Zhou Q, Zhang X, Zhao Q, Xu T, Hui S. Experimental study on the laminar flame speed of hydrogen/natural gas/air mixtures. Front Chem Eng China. 2010;4:417-422.
https://doi.org/10.1007/s11705....
7.
Gomes Antunes JM, Mikalsen R, Roskilly AP, An experimental study of a direct injection compression ignition hydrogen engine. Int J Hydrogen Energy. 2009;34(15):6516-6522.
https://doi.org/10.1016/j.ijhy....
8.
Haddad M, Javani N. Dynamic analysis of green hydrogen production integrated with storage tanks: An economical assessment for different demands. Int J Hydrogen Energy. 2024;140:1126-1139.
https://doi.org/10.1016/j.ijhy....
9.
Hamedani EA, Alenabi SA, Talebi S. Hydrogen as an energy source: A review of production technologies and challenges of fuel cell vehicles. Energy Reports. 2024;12:3778-3794.
https://doi.org/10.1016/j.egyr....
11.
Kanth S, Debbarma S. Comparative performance analysis of diesel engine fuelled with hydrogen enriched edible and non-edible biodiesel. Int J Hydrogen Energy. 2021;46(17):10478-10493.
https://doi.org/10.1016/j.ijhy....
12.
Köse H, Acaroğlu M. The effect of hydrogen addition to Cynara biodiesel on engine performance and emissions in diesel engine. Energy Sources, Part A. 2020;46(1):8455-8474.
https://doi.org/10.1080/155670....
13.
Kuta K, Nadimi E, Przybyła G, Żmudka Z, Adamczyk W. Ammonia CI engine aftertreatment systems design and flow simulation. Combustion Engines. 2022;190(3):3-10.
https://doi.org/10.19206/CE-14....
14.
Liu J, Liu J, Experimental investigation of the effect of ammonia substitution ratio on an ammonia-diesel dual-fuel engine performance. J Cleaner Prod. 2024;434:140274.
https://doi.org/10.1016/j.jcle....
15.
Liu J, Wang X, Zhao W, Sun P, Ji Q. Effects of ammonia energy fraction and diesel injection parameters on combustion stability and GHG emissions characteristics in a low-loaded ammonia/diesel dual-fuel engine. Fuel. 2024;360:130544.
https://doi.org/10.1016/j.fuel....
16.
Ma BC, Liu B, Wang Y, Liu L. Analysis on the combustion performance of ammonia-hydrogen coaxial stratified injection in low speed marine engine. Appl Therm Eng. 2025;126253.
https://doi.org/10.1016/j.appl....
17.
Monforti-Ferrario F, Crippa M, Pisoni E. Addressing the different paces of climate and air quality combustion emissions across the world. iScience. 2024;27:108686.
https://doi.org/10.1016/j.isci....
18.
Nadimi E, Przybyła G, Lewandowski MT, Adamczyk W. Effects of ammonia on combustion, emissions, and performance of the ammonia/diesel dual-fuel compression ignition engine. J Energy Inst. 2023;107:101158.
https://doi.org/10.1016/j.joei....
19.
Napolitano P, Fraioli V, Guido C, Beatrice C. Assessment of optimized calibrations in minimizing GHG emissions from a Dual Fuel NG/Diesel automotive engine. Fuel. 2019;258:115997.
https://doi.org/10.1016/j.fuel....
20.
Nie X, Bi Y, Shen L, Lei J, Wan W, Wang Z et al. Combustion and emission characteristics of ammonia-diesel dual fuel engine at different altitudes. Fuel. 2024;371B:132072.
https://doi.org/10.1016/j.fuel....
21.
Ovaere M, Proost S. Cost-effective reduction of fossil energy use in the European transport sector: an assessment of the Fit for 55 Package. Energy Policy. 2022;168:113085.
https://doi.org/10.1016/j.enpo....
22.
Rameez PV, Ibrahim MM. Maximizing hydrogen utilization in CI engines: an investigation of dual fuel and RCCI combustion approaches under low and mid-load conditions in a medium duty automotive engine. Energy Convers Manage. 2024;321:119100.
https://doi.org/10.1016/j.enco....
23.
Raza H, Woo S, Kim H, Investigation of an ammonium carbamate–based SCR system for NOx reduction in diesel engines under transient conditions. Energy. 2022;251:123918.
https://doi.org/10.1016/j.ener....
24.
Rrustemi DN, Ganippa LC, Megaritis T, Axon CJ. New laminar flame speed correlation for lean mixtures of hydrogen combustion with water addition under high pressure conditions. Int J Hydrogen Energy. 2024;63:609-617.
https://doi.org/10.1016/j.ijhy....
25.
Sarfaty M, Duritz N, Gould R, Mitchell M, Patel L, Paulson J et al. Organizing to advance equitable climate and health solutions: the medical society consortium on climate and health. The Journal of Climate Change and Health. 2022;7:100174.
https://doi.org/10.1016/j.jocl....
26.
Silveira JP, Fagundez JLS, Garlet RA, Martins MES, Salau NPG, Lanzanova TDM. Hydrogen-fueled PFI SI engine investigation for near-zero NOx emissions in de-throttled and supercharged ultra-lean burn conditions. Int J Hydrogen Energy. 2024;91:800-813.
https://doi.org/10.1016/j.ijhy....
27.
Tutak W, Jamrozik A, Grab-Rogaliński K, Pyrc M. Effects of ammonia energy fraction on combustion stability and emissions characteristics of naturally aspired industrial dual-fuel diesel engine. Energy Convers Manage. 2024;314:118698.
https://doi.org/10.1016/j.enco....
28.
Tutak W, Jamrozik A, Grab-Rogaliński K. Effect of natural gas enrichment with hydrogen on combustion process and emission characteristic of a dual fuel diesel engine. Int J Hydrogen Energy. 2020;45(15):9088-9097.
https://doi.org/10.1016/j.ijhy....
29.
Wang B, Yang C, Wang H, Hu D, Wang Y. Effect of diesel-ignited ammonia/hydrogen mixture fuel combustion on engine combustion and emission performance. Fuel. 2023;331(2):125865.
https://doi.org/10.1016/j.fuel....
30.
Wu B, Wang Y, Wang D, Feng Y, Jin S. Generation mechanism and emission characteristics of N2O and NOx in ammonia-diesel dual-fuel engine. Energy. 2023;284:129291.
https://doi.org/10.1016/j.ener....
31.
Xu L, Xu S, Bai XS, Repo JA, Hautala S, Hyvönen J. Performance and emission characteristics of an ammonia/diesel dual-fuel marine engine. Renewable and Sustainable Energy Rev. 2023;185:113631.
https://doi.org/10.1016/j.rser....
32.
Zhang Z, Hu J, Yang D, Yin Z, Lu K, Tan D. A comprehensive assessment over the environmental impact and combustion efficiency of using ammonia/hydrogen/diesel blends in a diesel engine. Energy. 2024;303:131955.
https://doi.org/10.1016/j.ener....
