Improving heat transfer of air-cooled cylinders with fins with slits
More details
Hide details
Submission date: 2025-05-19
Final revision date: 2025-06-19
Acceptance date: 2025-06-22
Online publication date: 2025-07-12
Corresponding author
Kohei Nakashima
Department of Vehicle and Mechanical Engineering, Meijo University, 1-501 Shiogamaguchi, Tempaku-ku, 468-8502, Nagoya, Japan
KEYWORDS
TOPICS
ABSTRACT

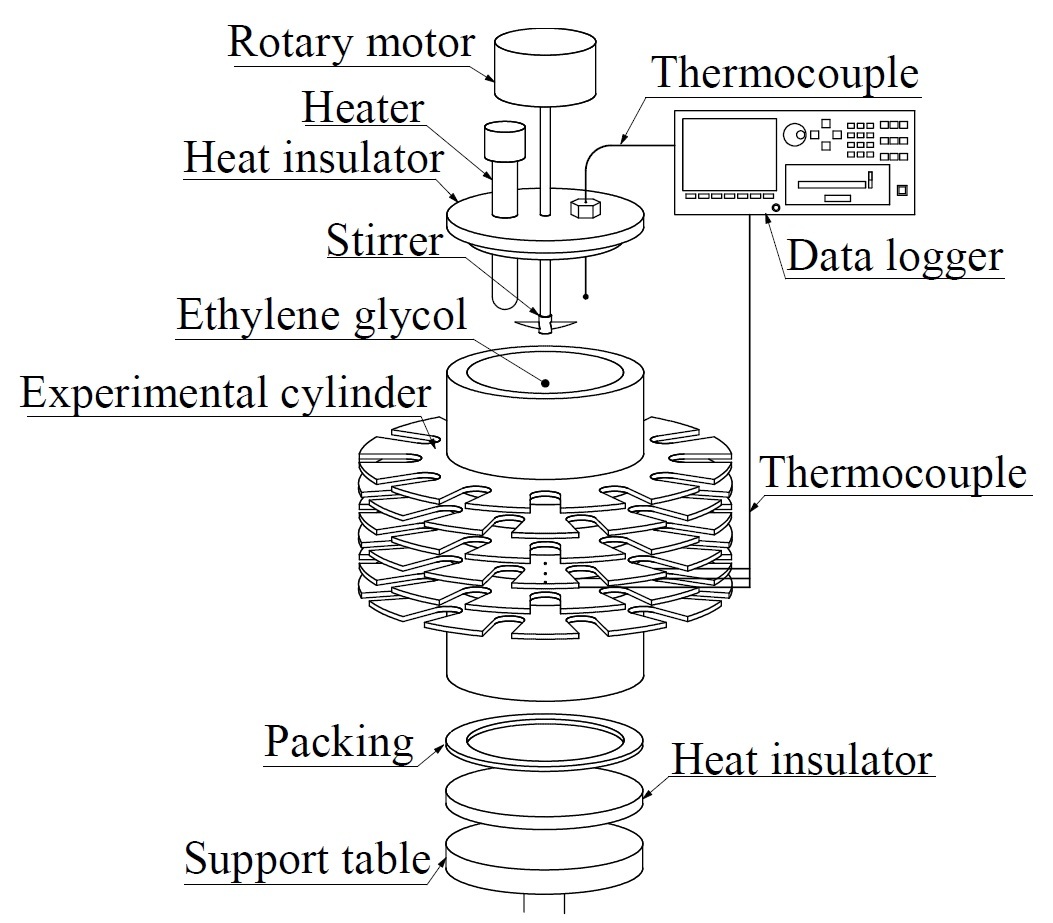

In finned cylinders with slits around the cooling fin circumference, thermocouples were attached at three
positions in the radial direction on the surface of the fin, and fin surface temperatures were measured by
rotating the cylinders relative to the flow direction in a wind tunnel to change the angular position of the
attached thermocouples. The temperature distribution around the fin circumference and the average heat
transfer coefficient were then investigated at air velocities from 20 km/h (5.6 m/s) to 60 km/h (16.7 m/s). Results
indicated that, compared with fins without slits, fins with slits, either aligned or offset, decreased fin surface
temperatures and increased the heat transfer coefficient. The fins with slits also resulted in a more uniform
circumferential temperature at the fin root at a lower air velocity, but not at a higher air velocity, compared to
fins without slits.
REFERENCES (15)
1.
Angamuthu K, Krishnan G, Gowrishankar M, Abraham JG. Modeling and simulation studies of 100 cc motor cycle engine cylinder with groove and perforated fin design using different materials. Mater Today-Proc. 2021;42:1447-1455.
https://doi.org/10.1016/j.matp....
2.
Biermann AE, Pinkel B. Heat transfer from finned metal cylinders in an air stream. NACA Report No.488. 1935.
3.
Dubey D, Singh D, Yadav A, Pal S, Thakur H. Thermal analysis of engine cylinder having thick tip with varying slot sizes and material. Mater Today-Proc. 2017;4:7636-7642.
https://doi.org/10.1016/j.matp....
4.
Howe H, Pischinger F. Der Luftgekühlte DEUTZ-Dieselmotor FL912. MTZ. 1968;29(4):132-138.
5.
Mishra AK, Nawal S, Thundil KRR. Heat transfer augmentation of air cooled internal combustion engine using fins through numerical techniques. Res J Engineering Sci. 2012;1(2),32-40.
6.
Nakashima K, Toda T, Ishihara S, Yamamoto M. Optimizing the cooling effects of fins with slits on an air-cooled cylinder by increasing natural convection. SAE Int J Passeng Cars – Mech Syst. 2009;1(1):877-882.
https://doi.org/10.4271/2008-0....
7.
Nakashima K, Mori Y, Yamada H, Yoshida M. Cooling characteristics of air-cooled cylinder with fins with slits under forced convection. Des Eng. 2019;54(8):551-558.
https://doi.org/10.14953/jjsde....
8.
Nakashima K, Mori Y, Yoshida M, Okura N. Cooling characteristics of air-cooled cylinder with fins with slits under forced convection (2nd Report, Fins with slits exhibiting a phase difference to slits immediately above). Des Eng. 2021;56(5):241-250.
https://doi.org/10.14953/jjsde....
9.
Sachar S, Parvez Y, Khurana T, Chaubey H. Heat transfer enhancement of the air-cooled engine fins through geometrical and material analysis: a review. Mater Today-Proc. (in press).
https://doi.org/10.1016/j.matp....
10.
Sroka ZJ, Sufe G, Kejela E. Improving heat transfer in an air-cooled engine by redesigning the fins. Combustion Engines. 2025;201(2):14-21.
https://doi.org/10.19206/CE-19....
11.
Thornhill D, May A. An experimental investigation into the cooling of finned metal cylinders, in a free air stream. SAE Technical Paper 1999-01-3307. 1999.
https://doi.org/10.4271/1999-0....
12.
Thornhill D, Graham A, Cunnigham G, Troxler P, Meyer R. Experimental investigation into the free air-cooling of air-cooled cylinders. SAE Technical Paper 2003-32-0034. 2003.
https://doi.org/10.4271/2003-3....
13.
Thornhill D, Stewart A, Cuningham G, Troxler P, Meyer R, Price B. Experimental investigation into the temperature and heat transfer distribution around air-cooled cylinders. SAE Technical Paper 2006-32-0039. 2006.
https://doi.org/10.4271/2006-3....
14.
Yoshida M, Soichi Ishihara S, Murakami Y, Nakashima K, Yamamoto M. Air-cooling effects of fins on a motorcycle engine. JSME Int J B-Fluid T. 2006;49(3):869-875.
https://doi.org/10.1299/jsmeb.....
15.
Yoshida M, Nakashima K, Nishii K, Hirai S, Ozaki S, Okura N. Cooling characteristics of air-cooled cylinder with fins with slits under forced convection (3rd Report, Cooling effects of number of slits in front). Des Eng. 2025;60(2):109-118 (in Japanese).
https://doi.org/10.14953/jjsde....
