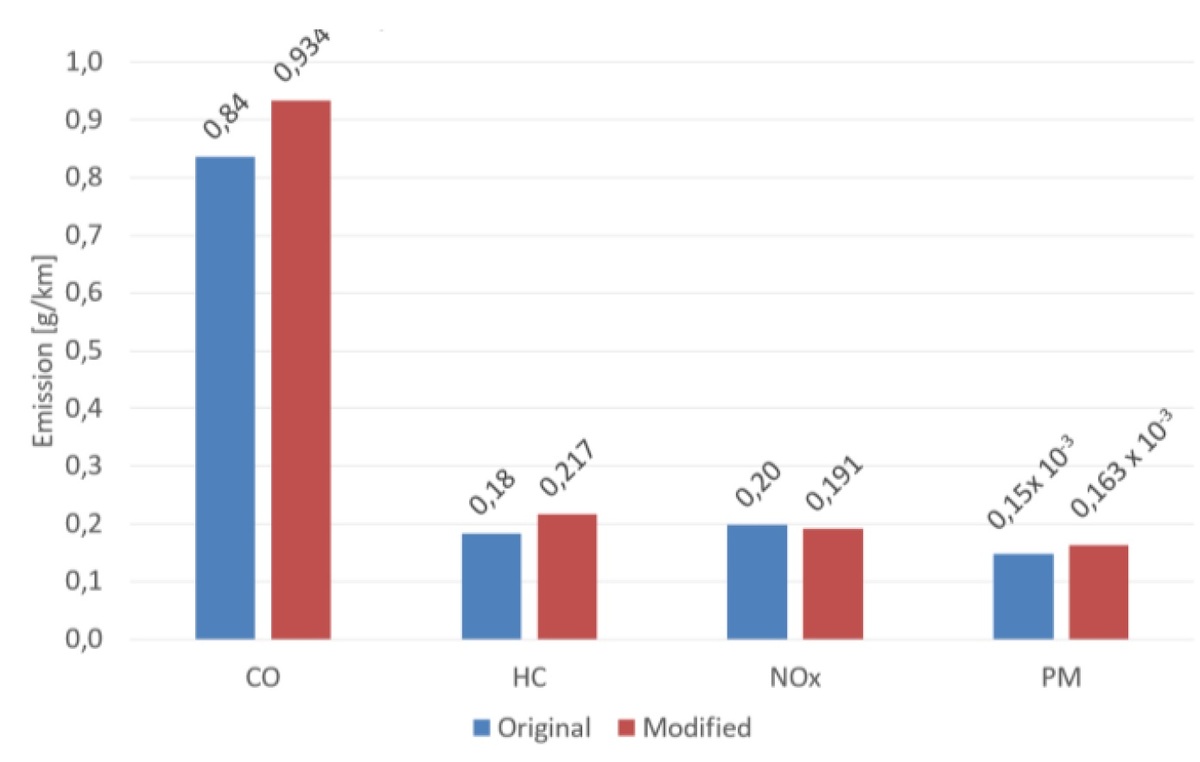

Figure from article: Chiptuning impact on...

KEYWORDS
TOPICS
ABSTRACT
The article presents the results of engine tests aimed at assessing the impact of modifications to engine control software on emission parameters and fuel consumption. Experiments were conducted on a 1.3 L MultiJet compression-ignition engine compliant with the Euro 6 standard. The electronic control unit's EEPROM was extracted and re-calibrated by a leading chiptuning company. Two operating scenarios-factory calibration and the modified calibration-were executed on an engine test bench equipped with a dynamic dynamometer. To ensure repeatability and comparability, the dynamometer governed engine speed and load in accordance with the New European Driving Cycle (NEDC) homologation procedure. Analysis of the revised calibration maps revealed substantive alterations, chiefly to the boost-pressure characteristic, the maximum-torque map, and the maximum fuel-injection-quantity map as a function of air mass. The resulting emission data demonstrate that chip-tuning exerts a pronounced impact on the engine's emission profile, elevating the release of toxic exhaust constituents, most notably nitrogen oxides.
REFERENCES (20)
1.
autocentrum.pl/dane-technique/volkswagen/caddy/ (accessed on June 10, 2025).

2.
autocentrum.pl/dane-technique/fiat/doblo/ (accessed on June 10, 2025).

3.
Bajerlein M, Karpiuk W, Smolec R. Application of gas dissolved in fuel in the aspect of a hypocycloidal pump de-sign. Energies. 2022;15(23):9163. https://doi.org/10.3390/en1523....

4.
Bor M, Borowczyk T, Idzior M, Karpiuk W, Smolec R. Analysis of hypocycloid drive application in a high-pressure fuel pump. MATEC Web Conf. 2017;118:00020. https://doi.org/10.1051/matecc....

5.
Bor M, Borowczyk T, Karpiuk W, Smolec R. Determination of the response time of new generation electromagnetic in-jectors as a function of fuel pressure using the internal pho-toelectric effect. 2018 International Interdisciplinary PhD Workshop (IIPhDW). IEEE. 2018. 335-339. https://doi.org/10.1109/IIPHDW....

6.
Kaminska M, Rymaniak Ł, Lijewski P, Szymlet N, Daszkiewicz P, Grzeszczyk R. Investigations of exhaust emissions from rail machinery during track maintenance op-erations. Energies. 2021;14(11):3141. https://doi.org/10.3390/en1411....

7.
Komorski P, Szymański GM, Nowakowski T. Development of the urban rail vehicle acoustic model. Appl Acoust. 2022;195:108807. https://doi.org/10.1016/j.apac....

8.
Körfer T, Herrmann OE, Lamping M, Ruhkamp L, Pis-chinger S, Schnorbus T. Advanced, robust control strategies for precise emission control of diesel engines during highly dynamic test cycles. 28th Internationales Wiener Motoren-symposium. Vienna 2007.

9.
Kozak M, Merkisz J. Oxygenated diesel fuels and their effect on PM emissions. Appl Sci. 2022;12(15):7709. https://doi.org/10.3390/app121....

10.
Lijewski P, Kozak M, Fuć P, Rymaniak Ł, Ziółkowski A. Exhaust emissions generated under actual operating condi-tions from a hybrid vehicle and an electric one fitted with a range extender. Transp Res Part D Transp Environ. 2020;78:102183. https://doi.org/10.1016/j.trd.....

11.
Merkisz J, Świątek P. The verification of ECU calibrations of a 1.3 Multijet engine on a chassis dynamometer. Combustion Engines. 2008;4(135):14-21. https://doi.org/10.19206/CE-11....

12.
Pietras D, Sobieszczański M, Świątek A, Pajdowski P. Selection of performance parameters of the 1.3 Multijet en-gine characteristic for the NEDC driving test for development studies. P05-C065, PTNSS Congress, Szczyrk 2005.

13.
Regulation (EC) no 715/2007 of the European Parliament and of the Council, Official Journal of the European Union L171/1 of 29.06.2007.

14.
Rymaniak Ł, Merkisz J, Szymlet N, Kamińska M, Weymann S. Use of emission indicators related to CO2 emissions in the ecological assessment of an agricultural tractor. Eksploat Niezawodn. 2021;23(4):605-611. https://doi.org/10.17531/ein.2....

15.
Sawczuk W, Kołodziejski S, Rilo Cañás AM. Determination of the resistance to motion of a cargo train when driving without a drive. Combustion Engines. 2024;197(2):64-70. https://doi.org/10.19206/CE-18....

16.
Ulbrich D, Kowalczyk J, Stachowiak A, Sawczuk W, Selech J. The influence of surface preparation of the steel during the renovation of the car body on its corrosion resistance. Coatings. 2021;11(4):384. https://doi.org/10.3390/coatin....

17.
Wendeker M, Gęca M, Barański G, Sochaczewski R. EURO 5 vehicle tests at full engine load. Autobusy. 2012;4:197-202.

18.
Wojciechowski H, Merkisz J. Results repeatability evaluation of exhaust emission data obtained in laboratory WLTC test conditions using stationary and PEMS analysers. Combustion Engines. 2025;202(3):154-161. https://doi.org/10.19206/CE-20....

19.
Ziółkowski A, Daszkiewicz P, Rymaniak Ł, Fuć P, Ukleja P. Analysis of the exhaust emissions from hybrid vehicle during RDE test. MATEC Web Conf. 2019;294:1-7. https://doi.org/10.1051/matecc....

20.
Ziółkowski A, Fuć P, Lijewski P, Jagielski A, Bednarek M, Kusiak W. Analysis of exhaust emissions from heavy-duty vehicles on different applications. Energies. 2022;15(21):7886. https://doi.org/10.3390/en1521....
