Figure from article: Transient combustion...

KEYWORDS
TOPICS
ABSTRACT

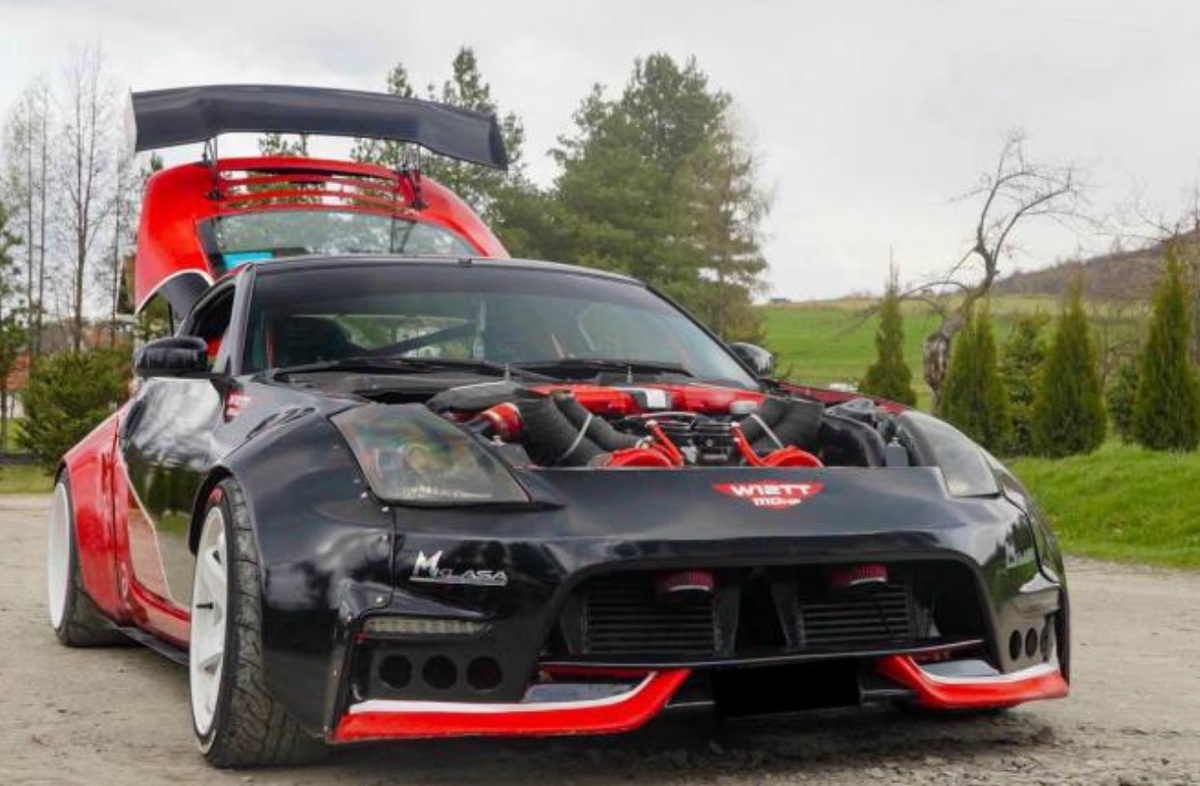

The paper presents an analysis of indicators of a high-performance W12 twin-turbo engine used in drifting applications, supplemented with time-series data on engine parameters. The tests were conducted on a chassis dynamometer using indicating and data logging equipment. The engine external characteristics were deter-mined, yielding 898 kW and 1488 Nm. To enable safe in-cylinder pressure measurements, the turbocharger boost control duty cycle was limited to 30%, resulting in reduced thermodynamic loading without compromis-ing the representativeness of the combustion process. The 450 consecutive operating cycles were recorded under transient conditions. Under full-load conditions, the average MBF50 = 13.8°CA and COV(MBF50) = 17.3%, indicating conservative phasing relative to MBT and significant cycle-to-cycle variability. It was demonstrated that indexing enables precise correlation of transient parameters with combustion evolution and is an effective tool for optimizing the calibration of high-performance engines.
REFERENCES (40)
1.
Alten H, Illien M. Demands on Formula One engines and subsequent development strategies. SAE Technical Paper 2002-01-3359. 2002. https://doi.org/10.4271/2002-0....

2.
ASM Tuning. Piggyback vs. Standalone ECU. 2026. https://asmtuning.co/piggyback....

3.
Audi MediaCenter. DTM 2019 – photo detail. 2026. https://www.audi-mediacenter.c....

4.
Audi MediaCenter. Audi R8 LMS – photo detail. 2026. https://www.audi-mediacenter.c....

5.
AutoRacing1. IndyCar 2.4L engines developed by Chevy and Honda headed to scrap heap. 2023. https://www.autoracing1.com/pl....

6.
AVL RaceTech. Vehicle and propulsion – H2 Race Engine. 2026. https://www.avlracetech.com/ve....

7.
Banish G. Engine management: advanced tuning. CarTech Inc.; 2011.

8.
Boretti A. Prototype powertrain in motorsport endurance racing. Warrendale, SAE International; 2018. https://doi.org/10.4271/PT-185.

9.
BorgWarner I. Turbo performance catalog. Auburn Hills (MI): BorgWarner Inc. 2024. https://www.borgwarner.com/doc....

10.
Budack R, Wurms R, Mendl G, Heiduk T. Der neue 2,0-l-R4-TFSI-Motor von Audi. MTZ – Mot Z. 2016;77:16-25. https://doi.org/10.1007/s35146....

11.
Chiriac R-L, Chiru A, Boboc RG, Kurella U. Advanced engine technologies for turbochargers solutions. Appl Sci. 2021;11:10075. https://doi.org/10.3390/app112....

12.
Dagys J. Juttner: LMP1 Hybrid is “Overkill” for Costs, Sustainability. 2017. https://sportscar365.com/leman....

13.
Engine Builder. Smoking Tires: A Look Inside Formula Drift. 2020. https://www.enginebuildermag.c....

14.
Errington T. Audi aiming to reduce its DTM budget in 2020. MotorsportCom. 2019. https://www.motorsport.com/dtm....

15.
Euwema D. DTM unveils GT3-based regulations and 2021 calendar. 2020. https://www.motorsportweek.com....

16.
Ford Racing. Ford Motorsport – drifting. 2026. https://www.fordracing.com/mot....

17.
Gautam SS, Singh R, Vibhuti AS, Sangwan G, Mahanta TK, Gobinath N, et al. Thermal barrier coatings for internal combustion engines: a review. Mater Today Proc. 2022;51:1554-1560. https://doi.org/10.1016/j.matp....

18.
GCG. All you need to know – BorgWarner EFR turbo-chargers. 2024. https://gcg.com.au/latest-news....

19.
Goodwin G. Toyota release TS050 powertrain images. 2024. https://www.dailysportscar.com....

20.
Haidinger S. This is how much it costs to race a full DTM season. 2026. https://www.motorsport.com/dtm....

21.
Hartman J. How to tune and modify engine management systems. MotorBooks International; 2004.

22.
Hoag K, Dondlinger B. Cylinder block layout and design decisions. Veh. Engine Des., Vienna: Springer; 2016:117-146. https://doi.org/10.1007/978-3-....

23.
HP Academy. Which standalone ECU is the best? 2026. https://www.hpacademy.com/tech....

24.
Jacob J, Colin JA, Montemayor H, Sepac D, Trinh HD, Voorderhake SF et al. InMotion: Hybrid race car, beating F1 at LeMans. 2013 Eighth Int. Conf. Exhib. Ecol. Veh. Renew. Energ. EVER, Monte Carlo: IEEE; 2013:1-16. https://doi.org/10.1109/EVER.2....

25.
Jones G. Engine of the Week: NASCAR Cup series Chevro-let 5.8L V8 engine. T2 Tomorrow’s Technicians. 2017. https://www.tomorrowstechnicia....

26.
Kalociński T, Rymaniak Ł, Fuć P. Powertrain technology transfer between F1 and the automotive industry based on Mercedes-Benz. Combust Engines. 2020;172:3-13. https://doi.org/10.19206/CE-20....

27.
Lehbrink I. Stage set for the Class 1 era: a detailed look at the new BMW M4 DTM. 2018. https://www.press.bmwgroup.com.

28.
Link ECU. Official ECU of Formula Drift. 2020. https://linkecu.com/2020-08-28....

29.
Long-term reliability of the G16E-GTS. Toyota GR Corolla forum – ownership discussion. 2022. https://www.grcorollaforum.com....

30.
Magda M. Mercedes AMG shows of F1 engine. Engine Labs. 2025. https://www.enginelabs.com/new....

31.
Martyr A, Martyr A, Plint M. Engine testing: The design, building, modification and use of powertrain test facilities. Elsevier; 2012.

32.
Papadakis. Racing – official website. 2026. https://doi.org/https://papada....

33.
Racing B. 2JZ GTE Turbo – 1700 HP street/strip engine complete Toyota Supra 3.2 L. Brangers Racing. https://brangersracing.com/sho....

34.
Rotax Racing. 125 MAX / DD2 EVO products. 2026. https://www.rotax-racing.com/p....

35.
Silvestro B. Watch an 11,000-HP dragster engine get rebuilt in seven minutes. Road & Track. 2018. https://www.roadandtrack.com/m....

36.
Stępień Z. A new generation of F1 race engines – hybrid power units. Combust Engines. 2016;167:22-37. https://doi.org/10.19206/CE-20....

37.
Sylt C. Revealed: The $1.4 billion cost of developing F1 engines. 2019. https://www.forbes.com/sites/c....

38.
Technology RE. Lamborghini Huracan GT3 naturally aspi-rated V10 GT3. Race engine technology. 2022. https://www.raceenginetechnolo....

39.
Venturoli E. The engine used in IndyCar competitions. RTR Sports. 2025. https://rtrsports.com/en/blog/....

40.
Zhang W, Wang B, Barber G, Lamonaca G. Low friction coating for high temperature bolted joints in IC engines. SAE Technical Paper 2023-01-0733. 2023. https://doi.org/10.4271/2023-0....
