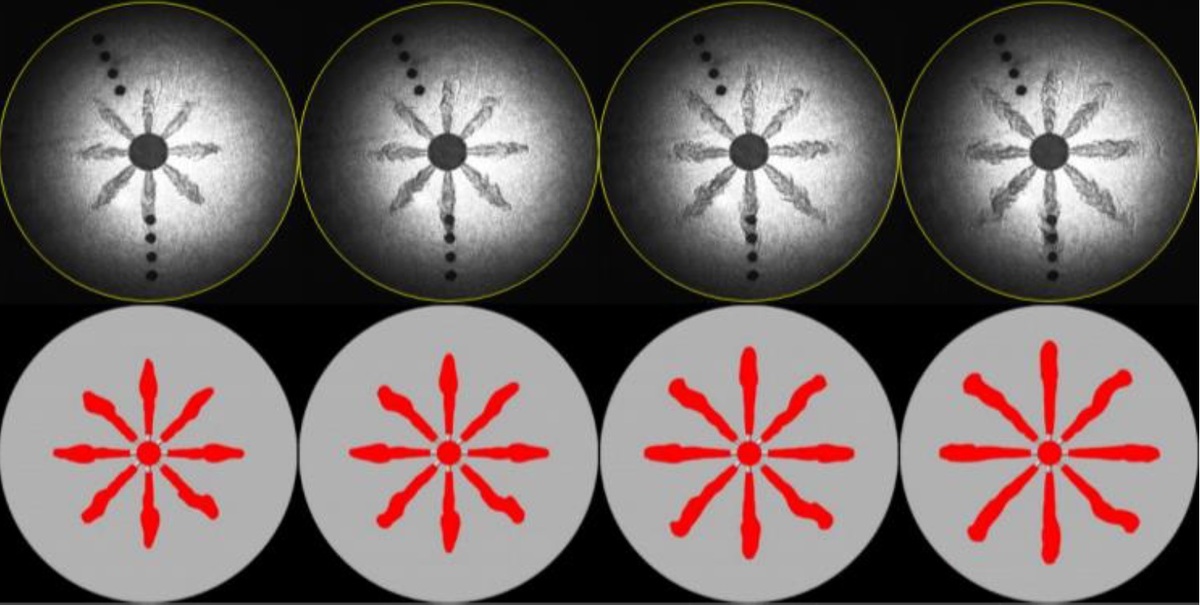

Fuel conversion from heavy oil to natural gas is favoured as a quick remedy for GHG re-duction from industrial engines in ship propulsion and power generation fields thanks to fewer carbon contents in natural gas. In medium-speed gas engines, the ejection of torch flame from a pre-chamber is often used to promote flame propagation within a main com-bustion chamber. Although orifice specifications affect the ejection behaviour of the torch flame and the following combustion in the main chamber, the effects are difficult to fully understand. Some of the authors developed a constant-volume combustion vessel that simu-lated the combustion chamber around the top dead centre of a pre-chamber type gas engine and observed the effects of orifice specifications on the torch flame ejection and the com-bustion in the main chamber. Still, the correlation was not concluded due to the lack of physical examination. In the paper, the above measurement results were confirmed by using RANS-type CFD considering the larger scale of the target engines, and the physical back-ground of the effects of orifice specifications was successfully reproduced.
Aakko-Saksa T, Lehtoranta K, Kuittinen N, Järvinen A, Jalkanen J, Johnson K et al. Reduction in greenhouse gas and other emissions from ship engines: current trends and future options. Prog Energ Combust. 2023;94:101055.
Abdelhameed E, Tsuru D, Tashima H, Sako T, Consideration of combustion improvements of lean-burn gas engine with pre-combustion chamber. 30th CIMAC World Congress, Busan 2023.
Atis C, Chowdhury SS, Ayele Y, Stuecken T, Schock H, Voice AK. Ultra-lean and high EGR operation of dual mode, turbulent jet ignition (DM-TJI) engine with active pre-chamber scavenging. SAE Technical Paper 2020-01-1117. 2020.
Bach C. Record efficiency for a gas engine. Empa HP.
Badr O, Alsayed N, Manaf M. A parametric study on the lean misfiring and knocking limits of gas-fueled spark ignition engines. Appl Therm Eng. 1998;18(7):579-594.
Falkner R. The Paris Agreement and the new logic of international climate politics. Int Aff. 2016;2(5):1107-1125.
Guo H, Zhou S, Shreka M, Feng Y. Effect of pre-combustion chamber nozzle parameters on the performance of a marine 2-stroke dual fuel engine. Processes. 2019;7(12):876.
Keenan M, Pickett R, Tronconi E, Nova I, Kinnunen N, Suvanto M et al. The catalytic challenges of implementing a Euro VI heavy duty emissions control system for a dedicated lean operating natural gas engine. Top Catal. 2019;62:273-281.
Kim J, Scarcelli R, Som S, Shah A, Biruduganti MS, Longman DE. Numerical investigation of a fueled pre-chamber spark-ignition natural gas engine. Int J Engine Res. 2022;23(9):1475-1494. https://doi:10.1177/1468087421....
Korakianitis T, Namasivayam AM, Crookes RJ. Natural-gas fueled spark-ignition (SI) and compression-ignition (CI) engine performance and emissions. Prog Energ Combust. 2011;37(1):89-112.
Kulzer AC. Sustainability & powertrain systems: from electrification to hydrogen and eFuels (updated). Proc. JSAE PEL Int Meeting, Technical Challenges for a Carbon Neutral Society by 2050. Kyoto 2023.
Liyan F, Jun Z, Bo L, Lei C, Weiyao W, Long W et al. Research on the characteristics of enrichment fuel injection process in the pre-chamber of a marine gas engine. SAE Technical Paper 2015-01-1961. 2015.
Matla J, Kaźmierczak A, Haller P, Trocki M. Hydrogen as a fuel for spark ignition combustion engines – state of knowledge and concept. Combustion Engines. 2024;196(1):73-79.
Sadanandan R, Markus D, Schießl R, Maas U, Olofsson J, Seyfried H et al. Detailed investigation of ignition by hot gas jets. P Combust Inst. 2007;31(1):719-726.
Senecal PK, Pomraning E, Richards KJ. Multi-dimensional modeling of direct injection diesel spray liquid length and flame lift-off length using CFD and parallel detailed chemistry. SAE Technical Paper 2003-01-1043. 2003.
Shapiro E, Tiney N, Kyrtatos P, Kotzagianni M, Bolla M, Boulouchos K et al. Experimental and numerical analysis of pre-chamber combustion systems for lean burn gas engines. SAE Technical Paper 2019-01-0260. 2019.
Tashima H, Kunimitsu M, Sugiura K, Tsuru D. Development of high-efficiency gas engine through observation and simulation of knocking phenomena. 26th CIMAC World Congress, Bergen 2010.
Trombley G, Toulson E. A fuel-focused review of pre-chamber initiated combustion. Energ Convers Manage. 2023;298:117765.
Validi AA, Schock H, Jaberi F. Turbulent jet ignition assisted combustion in a rapid compression machine. Combust Flame. 2017;186:65-82.
Valladolid PG, Tunestål P, Monsalve-Serrano J, García A, Hyvönen J. Impact of diesel pilot distribution on the ignition process of a dual fuel medium speed marine engine. Energ Convers Manage. 2017;149:192-205.
Wakasugi T, Tsuru D, Tashima H. Influences of the pre-chamber orifices on the combustion behavior in a constant volume chamber simulating pre-chamber type medium-speed gas engines. Combustion Engines. 2022;191(4):66-76.
Yasueda S, Takasaki K, Tashima H. The abnormal combustion affected by lubricating oil ignition in premixed gas engine, Proceedings of the ASME 2012 Internal Combustion Engine Division Spring Technical Conference. 2012:29-36.
Ye Y, Yue Z, Wang H, Liu H, Wu C, Yao M. A mapping approach for efficient CFD simulation of low-speed large-bore marine engine with pre-chamber and dual-fuel operation. Energies. 2021;14(19):6126.
Zhou L, Song Y, Hua J, Liu F, Liu Z, Wei H. Effects of different hole structures of pre-chamber with turbulent jet ignition on the flame propagation and lean combustion performance of a single-cylinder engine. Fuel. 2022;308:121902.
